Product Overview:

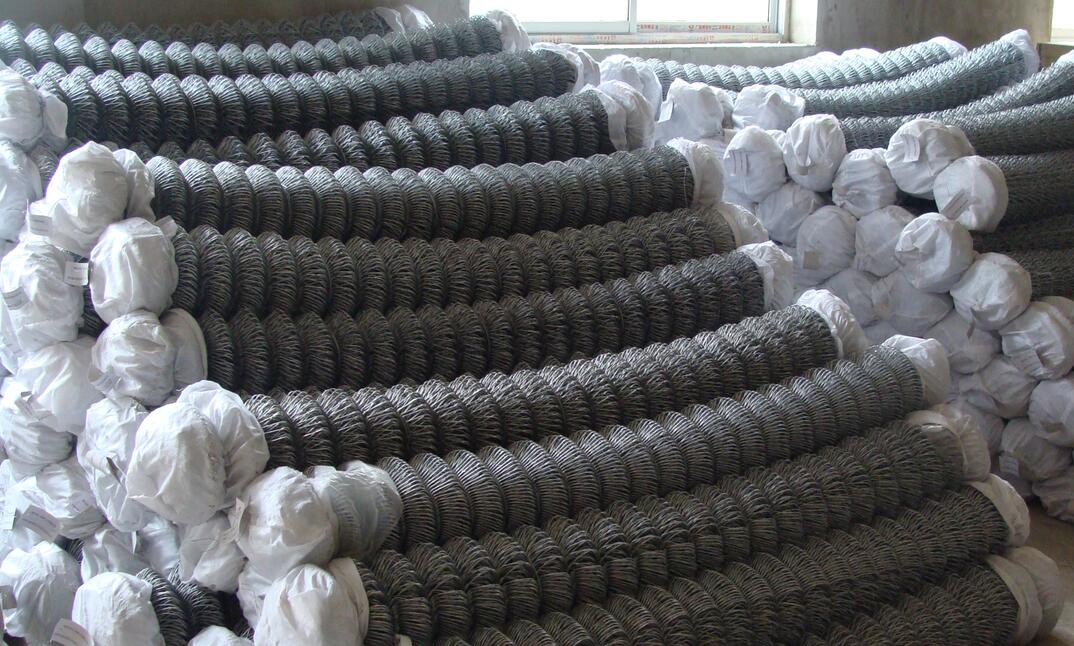

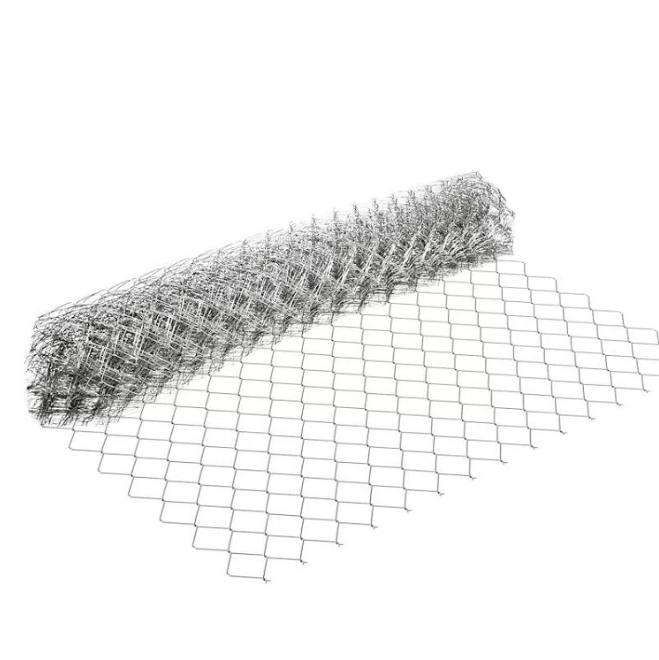

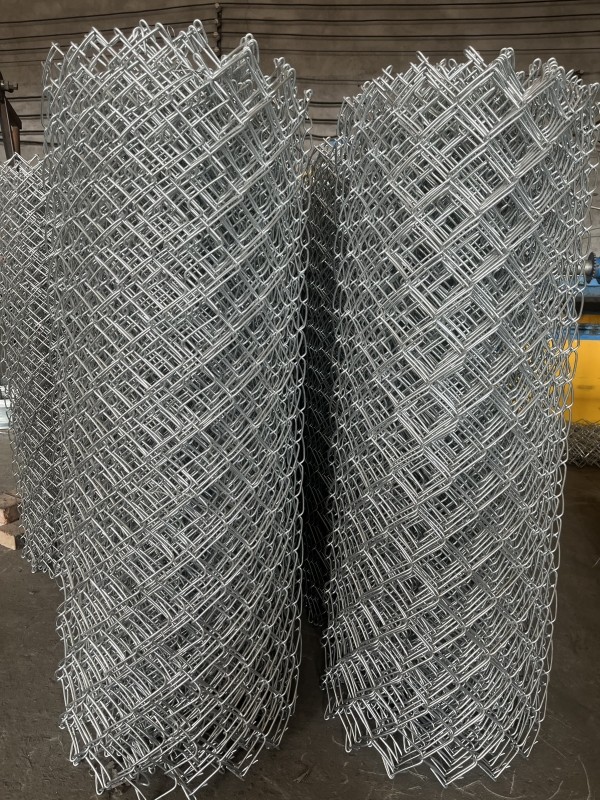

The Professional Chain Link Fence is a time-tested, high-versatility containment solution engineered for perimeter security, industrial zoning, and public infrastructure. Known for its distinct diamond-patterned weave, this system provides a robust, cost-effective, and transparent barrier that maintains high mechanical strength while allowing for excellent visibility and airflow.

Manufacturing & Technology:

• Structural Engineering: Fabricated from High-Tensile Steel Wire (Galvanized or PVC-coated). The wire is processed through a precision Automatic Chain Link Machine, which interlocks the wire in a continuous diamond pattern. This monolithic weaving structure ensures that the mesh remains flexible under impact, effectively absorbing kinetic energy without permanent deformation or structural failure.

• Surface Engineering (Corrosion Resistance):

• Hot-Dipped Galvanization: A heavy zinc coating ( 200g/m^2) provides deep cathodic protection against oxidation, suitable for long-term outdoor exposure.

• PVC/PE Coating: A thick, thermally bonded polymer layer offers an additional barrier against salt-spray, acidic soil, and UV degradation, extending service life in coastal or industrial environments.

• Operational Precision: The mesh is finished with two standard edge treatments: "Knuckled" (bent over) for safety, or "Twisted" (barbed) for high-security applications, ensuring consistent tension across the entire fence line.

Technical Parameters:

• Material: Low-Carbon Steel / High-Tensile Steel Wire.

• Mesh Size: 25mm – 100mm (Diamond Aperture).

• Wire Gauge: 2.0mm – 5.0mm(Core diameter).

• Finish: Galvanized / PVC-Coated (Standard colors: Green, Black).
