Product Overview:

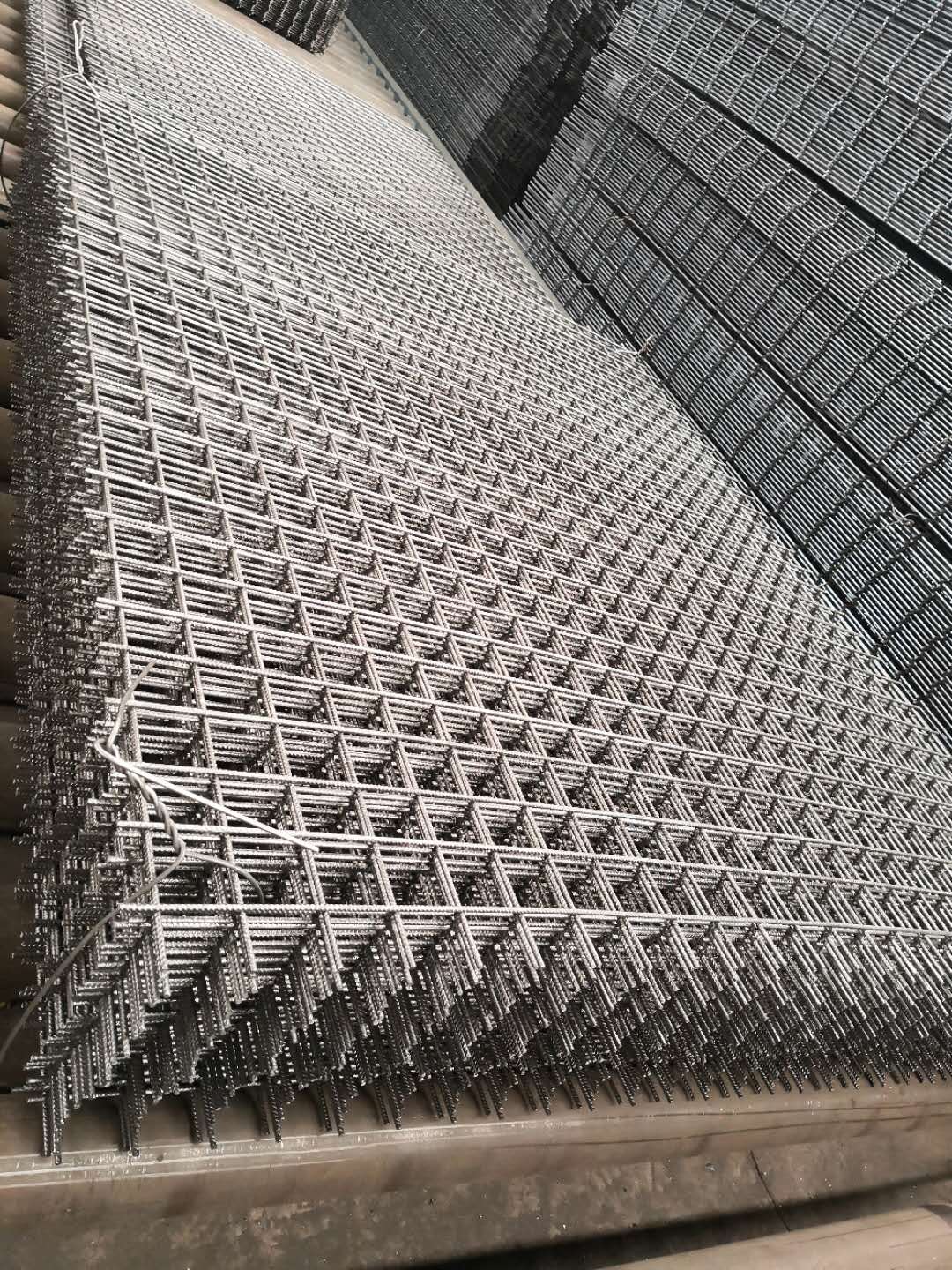

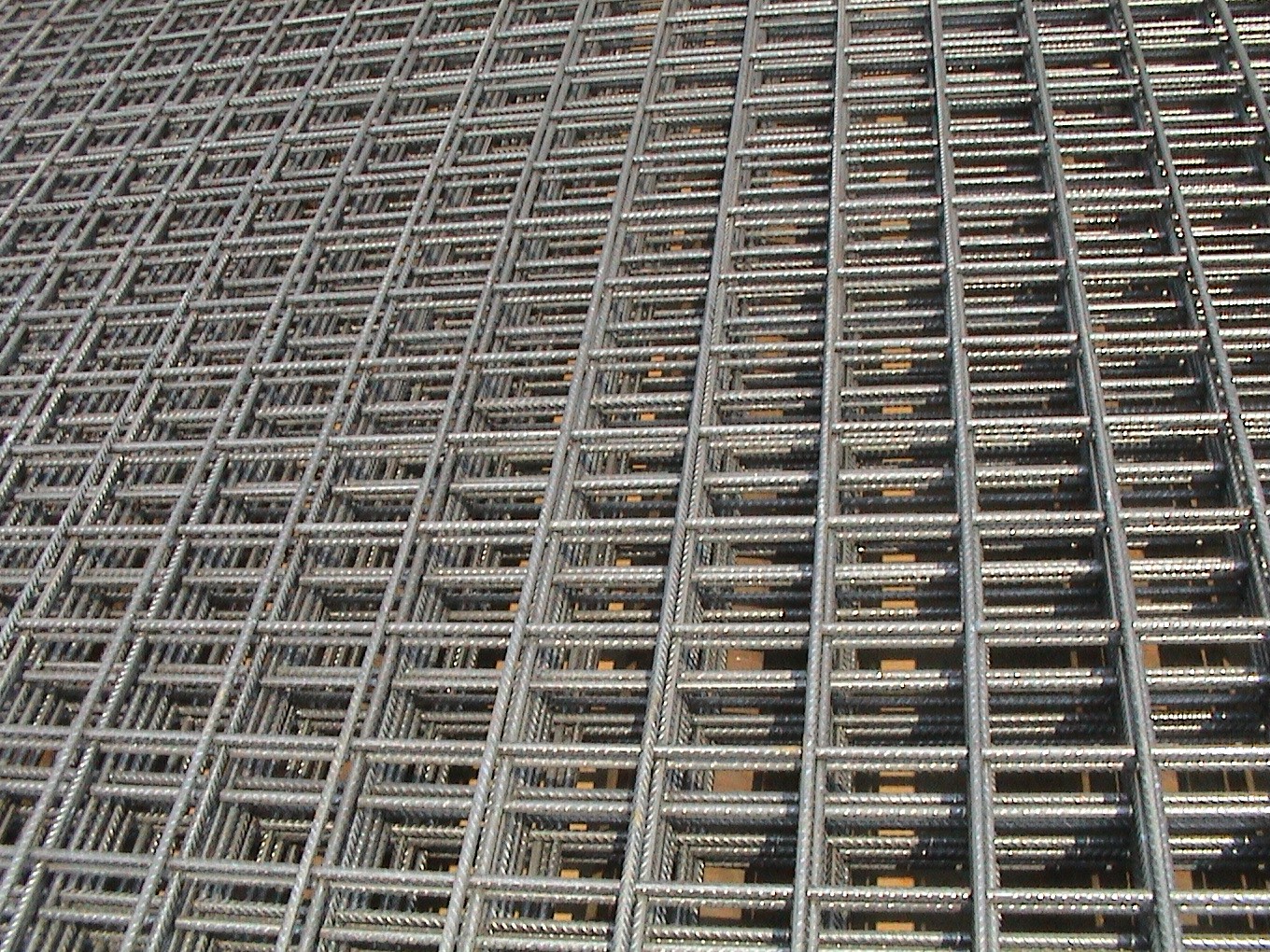

The Concrete Reinforcing Mesh (Welded Wire Fabric) is an essential structural element engineered for high-performance concrete construction. Designed to enhance the tensile strength of concrete slabs, pavements, and industrial flooring, our reinforcing mesh effectively distributes load-bearing forces and minimizes shrinkage cracking. It is the industry-standard solution for residential, commercial, and heavy-infrastructure projects requiring superior longevity and structural integrity.
Manufacturing & Technology:
Structural Engineering: Manufactured from Cold-Reduced High-Tensile Steel Wire (Yield Strength 500MPa). The intersections are joined using Computer-Controlled Automatic Resistance Welding, creating a monolithic grid that ensures structural load transfer is maximized throughout the slab.
Dimensional Precision: Engineered with a "High-Tolerance" Geometry. The consistency of the mesh aperture and wire gauge is monitored by laser-calibrated production lines, ensuring that the reinforcement layout complies with international building codes (e.g., AS/NZS 4671, BS 4483).

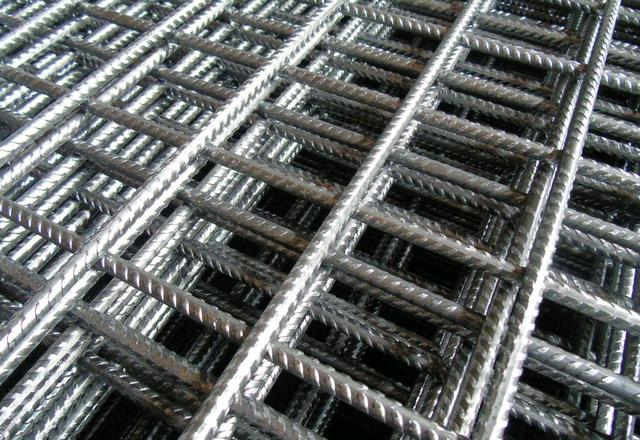

Surface Technology: The wire undergoes an In-Line Deforming Process (ribbing), which creates a mechanical interlock with the concrete. This significantly improves the bond strength between the steel and the concrete matrix, preventing structural slippage.
Quality Assurance: Every batch undergoes Tensile and Shear Strength Testing to ensure ductility and weld integrity, critical for applications subject to high dynamic or seismic loads.

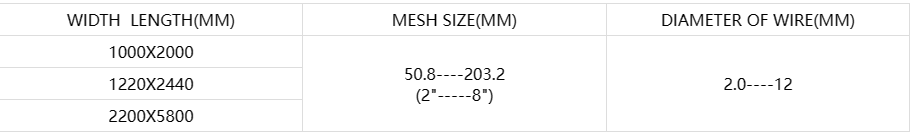

Technical Parameters:
Material: Cold-Drawn Ribbed Steel Wire (Class L or N).
Mesh Aperture: 100X100mm, 200X200mm (Standard square grid).
Wire Diameter: 5mm – 12mm (Customizable).
Standards: Compliance with ISO 9001 and local building structural standards.
