Product Overview:

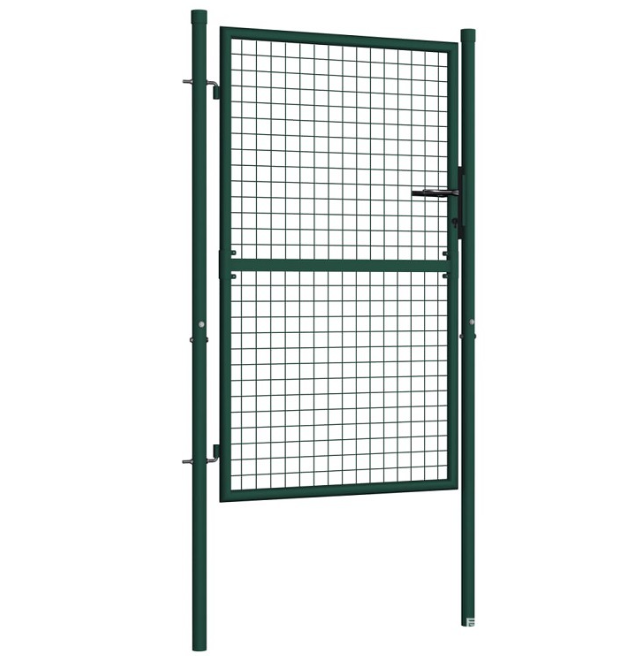

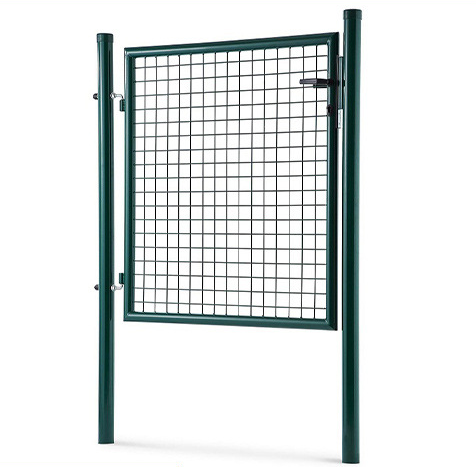

The Professional Single Gate is a modular perimeter access solution engineered for sustainable garden landscaping, agricultural boundary control, and light-duty industrial security. Designed to perfectly complement existing wire mesh fencing systems, this gate provides a clean, professional entrance that prioritizes durability, ease of installation, and long-term anti-corrosion performance.

Manufacturing & Technology:

• Structural Engineering: The main door frame is fabricated from Heavy-Duty Galvanized Steel Tubing (typically 40mm - 48mm diameter) and cladded with a High-Tensile Welded Wire Mesh. Frame joints are precision-welded using 360-degree Robotic Arc Welding, ensuring a gap-free, highly rigid structure that resists diagonal warping over time.

• Double-Layer Anti-Corrosion: The entire gate assembly undergoes a rigorous two-stage surface treatment:

• Stage 1: Hot-Dipped Galvanization: Zinc coating ( 200g/m^2) provides fundamental cathodic protection against rust.

• Stage 2: Electrostatic Powder Coating: A thick layer of UV-Stabilized Polyester Powder (Standard Garden Green RAL6005) is applied to create a scratch-resistant, architectural-grade aesthetic that withstands harsh environmental degradation and fading.

• Operating Mechanism: Equipped with Industrial-Grade Adjustable Hinges (for precise alignment post-installation) and a reinforced Slide-Bolt Latch System. The latch is designed with high tolerance for reliable closure even in challenging ground conditions.

• Safety Integration: Engineered with rounded, deburred metal edges and a secure locking hasp (compatible with padlocks) to prevent unauthorized manipulation while ensuring operator safety.

Technical Parameters:

• Material: Q235B Structural Steel.

• Mesh Configuration: 50X50mm or 50X100mm (Anti-paw-trapping aperture).

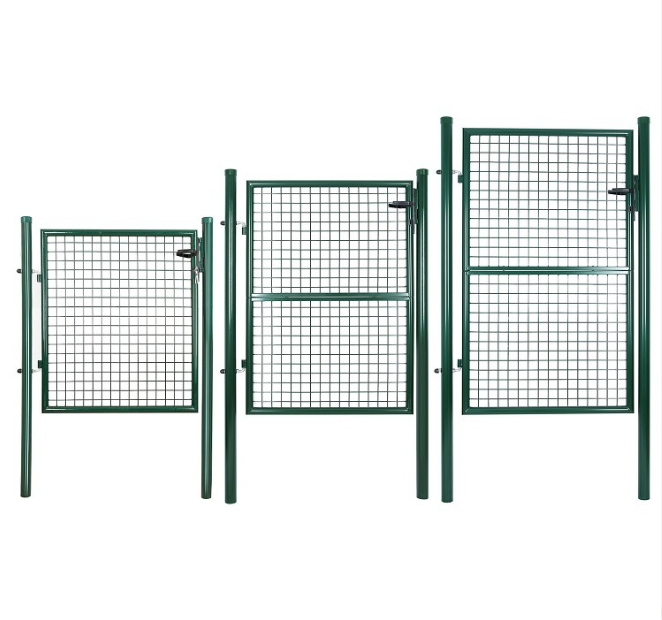

• Dimensions: Modular sizing (0.8m – 1.5m width; 1.0m – 2.0m height).

• Finish: Pre-Galvanized + Powder Coating (RAL colors).
